Stainless Steel Hammer Union Pressure Transmitter For Oil Fields DC12V - 36V 15000psi

Name: Stainless Steel Hammer Union Pressure Transmitter For Oil Fields DC12V 36V 15000psi
Brand: ruijia
Price: 500 USD

Quality Stainless Steel Hammer Union Pressure Transmitter For Oil Fields DC12V - 36V 15000psi wholesale

Brand Name : ruijia

Model Number : PTM-5F

Place of Origin : china

MOQ : 1pc

Price : USD500/pc

Payment Terms : Western Union, MoneyGram, L/C, T/T

Supply Ability : 1000 Piece/Pieces per Month

Delivery Time : 2-4 weeks

Packaging Details : each unit has individual box and all boxes are packed in standard packages

OEM /ODM : available

range : 6bar, 10bar, 20bar, 50bar

Supply : 12-36VDC

Diaphragm material : 316L shield machine pressure sensor

house material : 304, 316L stainless steel

over pressure : 150%FS shield machine pressure sensor

Accuracy : 0.25%FS,0.5%FS,1.0%FS

medium temperature : 25-85℃

Contact Now

High accuracy Stainless steel Pressure Sensor 15000psi Hammer Union pressure Transmitter for Oil Fields

Description of High accuracy Hammer Union Pressure Transducer
The Model PTM-5F pressure transmitters have been designed specifacally for oil field application. These pressure transmitters provide different kinds of signal output, including 4-20mA, 1-5VDC, 0-10VDC etc. The model PTF-5F has wide measuring ranges from 0…5000PSI to 0…45000 PSI, and it features fast dynamic response speed, high accuracy, strong anti-fatigue. The hammer union pressure fitting makes it easy to install and convenience to use at oil well driling and servicing.

Features of PTM-5F High accuracy Hammer Union Pressure Transducer
1. High accuracy: 0.25%FS or 0.5%FS
2. Shock and vibration resistant
3. Pressure up to 45,000 PSI
4. Hammer Union pressure fitting

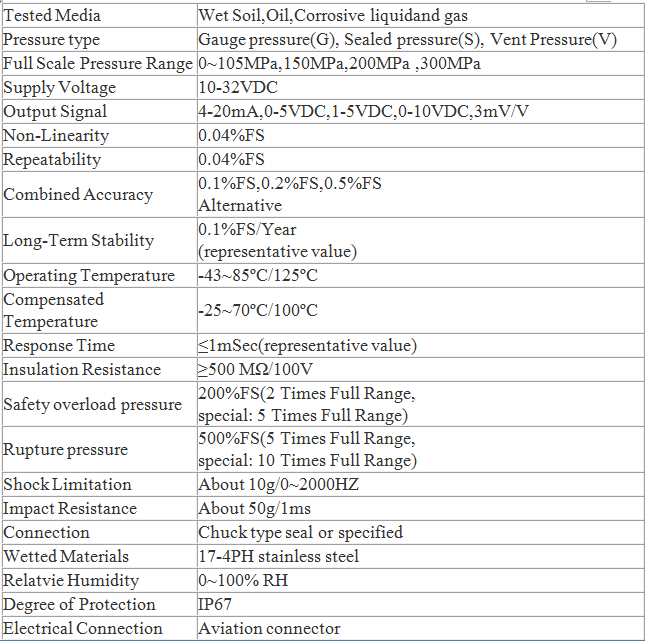

Specification of PTM-5F High accuracy Hammer Union Pressure Transducer

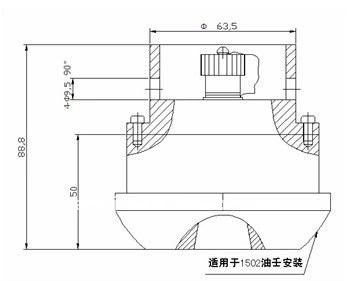

Dimensions in mm of PPM-T293A High accuracy Hammer Union Pressure Transducer

Stainless Steel Hammer Union Pressure Transmitter For Oil Fields DC12V - 36V 15000psi

Wiring diagram of PPM-T293A High accuracy Hammer Union Pressure Transducer

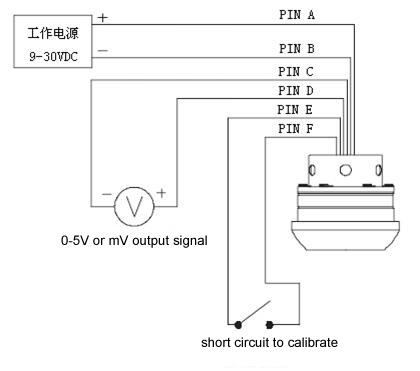

Output signal: 0-5VDC, mV

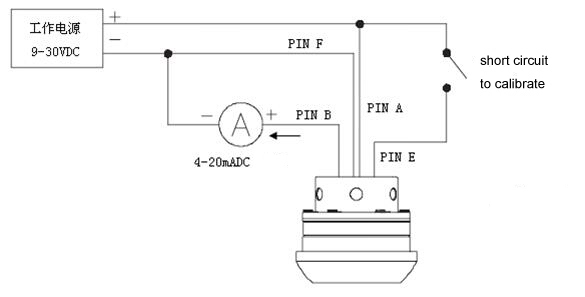

Output signal:4-20mA

Stainless Steel Hammer Union Pressure Transmitter For Oil Fields DC12V - 36V 15000psi

Product Application

Our products are widely used in the field of road,railway,metro,utilities construction applicated for various earth pressure balance shield machine.slurry shield machine.hard rock tunnel boring machine etc.
Stainless Steel Hammer Union Pressure Transmitter For Oil Fields DC12V - 36V 15000psi

FAQ

1. What detailed information do I need to provide if I want to place an order?
We need to know the following information: Capacity, Usage and other related parameters you need.

2. Do you have any discount?
Yes, if you buy large QTY, please send us a email, we will give you a big discount.

3. What terms of payment are available?
We accept T/T, L/C, Trade assurance, Secure payment, Western Union, Paypal, Money Gram, etc.

4.When will you arrange the production?
We will arrange the production immediately after receiving your payment.
